Ever yanked a cord, and the plug just… wouldn't budge? Or worse, it felt loose and wobbly? Understanding your 5-15P plug will save you such headaches.

The 5-15P plug is the most common plug around North America and some other countries. You see it everywhere! It's on your lamps, TVs, and even some power tools.

This guide breaks down everything about the 5-15P plug. Learn how it works, how to use it safely, and how to choose the right one. Let's dive in!

Understanding the Basics of the 5-15P Plug

First, let's look at what makes a 5-15P plug tick. Understanding its parts and ratings keeps you safe and powered up.

What Does 5-15P Mean?

"5-15P" sounds like a secret code. But it is actually simple. The "5" represents 5 amps. The "15" stands for 15 volts. And "P" means it’s a plug. So, 5-15P means a 5 amp, 15 volt plug.

This standard came about a long time ago, but it become a main connector. This plug is built for everyday power needs.

Anatomy of a 5-15P Plug: A Detailed Look

A 5-15P plug has a few key parts. There are two flat blades. One blade is wider than the other. A round grounding pin exists too. The plug body houses it all. Finally, the cord jacket protects the wires.

·         Blades: These flat prongs carry the electricity. The wider blade is neutral, while the narrower one is hot.

·         Grounding Pin: The round pin connects to ground. It's an important safety feature.

·         Plug Body: This part is made of plastic or rubber. It holds everything together.

·         Cord Jacket: This outer layer protects the wires inside the cord.

Each piece plays its own important part.

Voltage and Amperage Ratings: What You Need to Know

The 5-15P plug works with 120V in North America. Its amperage rating is 15A. Don't overload it! Overloading can cause fires.

Circuit breakers protect your home. They cut off the power if there’s too much electricity. Make sure you know where your circuit breaker is located!

Safety First: Handling and Using 5-15P Plugs Safely

Safety should always come first. Learn how to handle 5-15P plugs to avoid accidents.

Identifying Common Hazards and Risks

Several dangers exist with 5-15P plugs. Watch out for frayed cords. Also, loose connections are risky. Water exposure is a big hazard. Overloaded circuits can start fires. Damaged plugs are never good.

Best Practices for Safe Usage

Follow these tips for safe use:

·         Inspect plugs often. Look for damage.

·         Replace bad cords. Don't use them.

·         Don't use too many extension cords.

·         Keep plugs away from water.

·         Never force a plug. If it doesn't fit, don't force it!

Troubleshooting Common Issues

What if a plug doesn't fit? Or a breaker trips? If a plug gets too hot, turn it off. Know when to call a pro. If you are unsure, a qualified electrician can help.

Common Applications of the 5-15P Plug

5-15P plugs power so many things! They are used in appliances to power tools. Here's where you will see them:

Household Appliances and Electronics

Many things in your home use 5-15P plugs. Lamps, TVs, and computers use them. Kitchen appliances like blenders and toasters use them too.

Power Tools and Equipment

Power tools often use 5-15P plugs. Drills and saws are common examples. Other tools like corded lawnmowers or leaf blowers need them too.

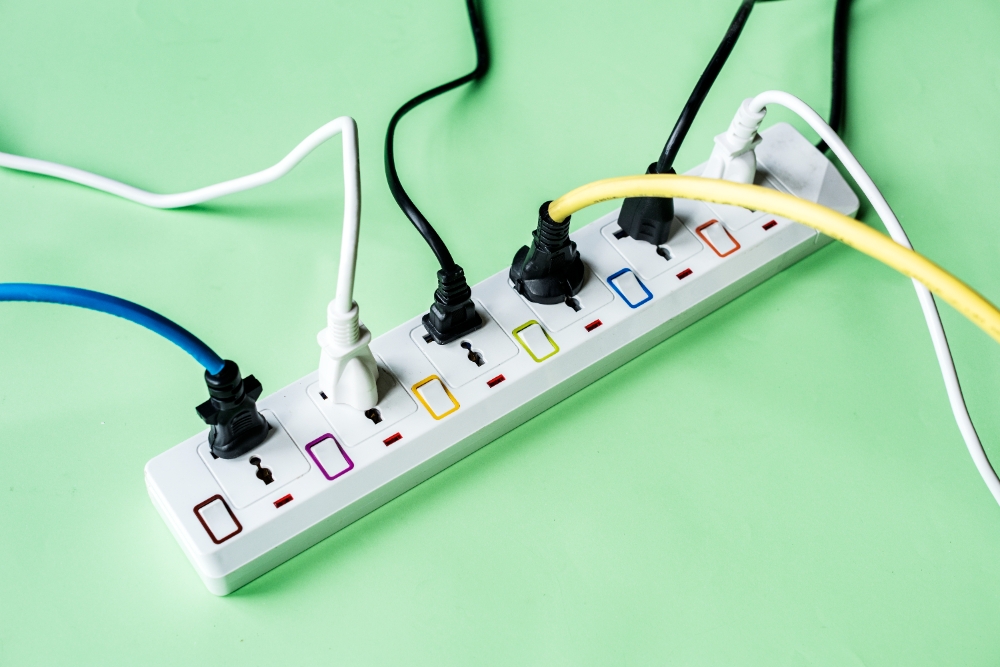

Extension Cords and Power Strips

These plugs are on extension cords. Power strips use them too. Always use these devices carefully! Don't overload them with too many things.

Choosing the Right 5-15P Plug and Cord

Picking the right plug and cord matters. Here is how to choose the best ones:

Understanding Cord Types and Gauges

Cords come in different types. SJT and SOOW cords are common. Gauges like AWG show the wire thickness. Choose the right cord for the load. Heavier-duty jobs need thicker, lower-AWG wire.

Replacing a Damaged 5-15P Plug: A Step-by-Step Guide

Replacing a bad plug is easy. Here's how:

1.      Unplug the cord.

2.      Cut off the old plug.

3.      Strip the wire ends.

4.      Connect the wires to the new plug. Match the colors.

5.      Tighten the screws.

6.      Close the plug.

Be safe! Use the right tools.

When to Upgrade to a Different Plug Type

Sometimes, a 5-15P isn't enough. Big appliances need more power. Consider a 5-20P plug for these. It handles more electricity.

Beyond the Basics: Advanced Tips and Considerations

Want to know even more? Here are some extra tips.

The Future of Electrical Connectors: Trends and Innovations

What's next for plugs? USB-C power is coming! Smart plugs are also getting popular. These new tech upgrades provide many benefits.

Energy Efficiency and the 5-15P Plug

Plugs and energy matter. "Phantom loads" waste power. Unplug devices when not in use. This can save you money.

5-15P Outside of North America

The 5-15P plug is used in Japan. It is also used in parts of Central and South America. Adaptations may be needed in other places.

Conclusion

The 5-15P plug is used everywhere. Understand its features. Know the safety rules. Pick the right cords and plugs. Stay safe and powered up.

Check your plugs often. Take electrical safety seriously.

Always call a qualified electrician if you have concerns.
